Small Watec WAT-902H2 ULTIMATE 1/2 CCD 570TV Lines B/W CCTV Camera

Small Watec WAT-902H2 ULTIMATE 1/2 CCD 570TV Lines B/W CCTV Camera

Cheap Small Watec WAT-902H2 CCTV Camera

Condition:New
Model: Watec WAT-902H2
Scope: SMEs
Device Type: monochrome camera
Video Output: 1Vpp-75
Minimum illumination: 0.0003Lux F1.4 (AGC: High)
SNR: 46dB
Gain: Auto


List Price:
Now Price:


The Watec WAT-902H2 ULTIMATE 1/2" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera.
For the ULTIMATE models, Watec WAT-902H2 redesigned the base platform of the 902 series cameras to include higher sensitivity, better S/N ratios, more versatile shutter speed control, and fully adjustable camera functions--including manual gain control and manual back-light compensation.

Watec WAT-902H2 Camera Features:

*  1/2" IT CCD
*  Resolution: 570 TVL
*  Min. Illumination: 0.0001 Lux @ F1.4, 0.000033 Lux @ F0.8
*  Near IR sensitivity
*  Fully adjustable camera functions - MGC and manual BLC
*  Auto Iris connection & BNC connection
*  Multi-functions: Back light compensation, AGC, shutter speed control, flickerless mode, electronic iris, iris level control
*  Compact and Lightweight: 3.5 oz. (98g)
*  CS lens mount

*  Minimum Illumination (Lux): 0.0003Lux F1.4 (AGC: High),
Automatic automatic gain control (dB) High :5-50 Low5-32,
SNR (dB): 46,
Gradation characteristics: P 0.45;
Watec WAT-902H2 good performance .

Watec WAT-902H2 Specifications:

Model WAT-902H2 ULTIMATE (EIA) WAT-902H2 ULTIMATE (CCIR)
Pick-up element 1/2 inch interline transfer CCD image senso
Number of total pixels 811(H) 508(V) 795(H) 596(V)
Number of effective pixels 768(H) 494(V) 752(H) 582(V)
Unit cell size 8.4m(H) 9.8m(V) 8.6m(H) 8.3m(V)
Synchronizing system Internal
Scanning system 2:1 interlace
Video output Composite Video, 1Vp-p, 75ohms, unbalanced
Resolution (H) 570TVL (Center)
Minimum illumination 0.0001lx F1.4
S/N More than 50dB (AGC=5dB,=1.0)
AE mode Fixed 1/60, 1/100 sec. 1/50, 1/120 sec.
1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec
EI

1/60 - 1/100000 sec.

1/100 - 1/100000 sec.

1/50 - 1/100000 sec.

1/120 - 1/100000 sec.

AGC HI: 5 - 60dB / LO: 5 - 32dB
MGC 5 - 60dB
Gamma characteristics P0.35(HI) /èP0.45(LO) /=1.0(OFF)
Lens-iris Video / DC (EIAJ arrangement, Auto-select)
Back light compensation ON / OFF
Power supply DC+12V10%
Power consumption 1.32W (110mA)
Operating temperature -10C-40C
Storage temperature -30C-70C
Operating / Storage humidity Less than 95% RH (Without condensation)
Lens mount CS mount
Weight Approx. 98g

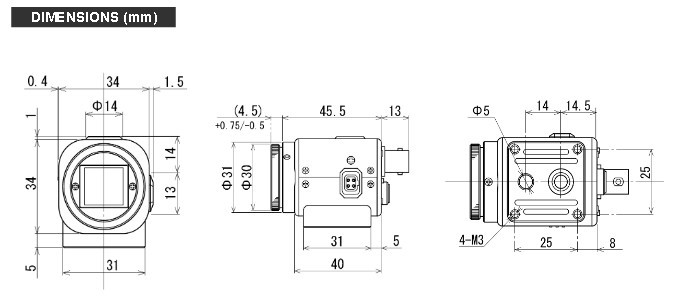

SizeWHL(mm) 35.53658
