Sony XC-HR50 Monochrome Progressive Scan Black and White CCD Camera

Sony XC-HR50 Monochrome Progressive Scan Black and White CCD Camera

Sony XC-HR50 Monochrome CCD Camera

Condition:New
Model:Sony XC-HR50

List Price:
Now Price:


When high quality imaging and speed are of the essence, turn to the compact champion, SONY XC-HR50, for the solution. The new sony XC-HR50 is a compact, lightweight, black and white video camera incorporating the latest 1/3 Type Interline Transfer (IT) Progressive Scan CCD with HAD technology providing 659 (H) x 494 (V) effective picture elements and incorporating a C-mount type lens mount. The sony XC-HR50 can capture high quality images at fast frame rates (twice the speed of Sony's popular XC-55 camera) and is ideal for demanding applications such as semiconductor production and high speed assembly line inspection.

SONY XC-HR50 Highlights:

*   1/3 Type IT Progressive Scan CCD
*   High frame rate - 60 full frames per second/120 binned frames per second
*   High rate scanning to increase vertical scanning frequency compared to the XC-55 - up to 200 partial frames per second
*   Partial Scan controlled by VD pulse length
*   Square Pixels
*   Minimum Illumination of 1 lux @ F1.4
*   Small, lightweight one-piece body - 29 (W) x 29 (H) x 30 (D)/50g

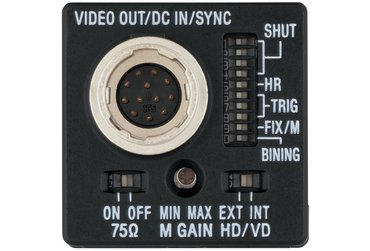

*   All controls are external for easy configuration
*   Flexible Trigger Shutter Interface - Exposure set with switches or pulse width
*   Rugged and Robust -10G vibration tolerance/70G shock resistant
*   C-Mount / No IR cutoff filter

SONY XC-HR50 Specifications:


Camera Specifications Detail:
Image Device 1/3 type IT Progressive Scan CCD
Image Device Value Monochrome
Cell Size 7.4 m x 7.4 m
Effective Pixels 659 x 494
Effective Lines 648 x 494 - VGA
Camera Interface Analog
Lens Mount C-Mount
Flange Back 17.526 mm
Vertical Frequency 31.468 kHz 1 %
Resolution VGA
Sync System Int/Ext
External Sync Signal HD/VD
Jitter Less than 20 ns
Scanning System Progressive Scan
Gain Fix/Manual
Gamma OFF fixed
Normal Shutter Normal shutter
Restart/Reset
External trigger shutter (Mode 1/MODE 2)
External Trigger Shutter / Speed 1/4 to 1/100000s
External Trigger Polarity: +
Width: 2 s to 250ms
Input impedance: 10 k or more (H: +2 to +5.0V
L: 0 to 0.6V)
Polarity: +
Width: 2 s to 250ms
High Rate Scanning R/R Mode Binning Off:
Max 240 frames/s
R/R Mode Binning On:
Max 360 frames/s
External trigger shutter mode Binning Off :
Max 240 frames/s
External trigger shutter mode Binning On:
Max 360 frames/s
Output Signal Frequency 59.94 Hz (normal mode)
119.88 Hz (binning mode)
Shutter Speed OFF to 1/30000s switchable at rear panel

Video Output Specifications Detail:
Horizontal Resolution 500 TV lines
Minimum Illumination 1.0 lux (F1.4
Manual gain Max)
Output Connector 12 pin (New EIAJ)
S/N Ratio 58 dB
Sensitivity 400 lux F5.6 (Fix Gain 0 dB)
Video Output 1.0 Vp-p
Sync negative
75
Unbalanced

General Specifications Detail:
Dimensions (W x H x D) 1 3/16 x 1 3/16 x 1 3/16 inches
(29 x 29 x 30 mm)
Weight 50 g (2 oz)
Power Requirements DC 12 V (+10.5 to 15 V)
Power Consumption 1.8 W
Operating Temperature -5 to 40C (23 to 113 F)
Storage Temperature -30 to 60 C (-22 to 140 F)
Operating Humidity 20 to 80 % (no condensation)
Storage Humidity 20 to 95 % (no condensation)
Vibration Resistance 10G (20 Hz to 200 Hz)
Shock Resistance 70 G
Regulatory Compliance UL 6500
FCC Class A Digital Device
CE (EN61326/97+A1/98)
AS4251.1+A4252.1
