ITEM: |
DESCRIPTION: |
Model No. |
MTV-64G5DHN |
MTV-64G5DHP |
TV System |
NTSC |
PAL |
Image Sensor |
1/4-inch CCD Image Sensor |
CCD Total Pixels |
811(H) X 508(V) |
795(H) X 596(V) |
Scanning System |
525 lines, 60 fields/sec |
625 lines, 50 fields/sec |
Sync system: |
Internal / VD-Lock |
Minimum Illumination£º |
Typical |
1.5 Lux ( F1.6, 5600ºK) 50IRE |
Star Light Mode |
0.07 Lux ( F1.6, 5600ºK ) 50IRE |
Resolution£º |
520 TVL |
S/N Ratio£º |
52dB ( MIN ) / 60dB ( TYP ) (AGC OFF) |
White Balance: |
ATW / AWC / FIX ( Zero color rolling) |
White Balance Range: |
3200---10000 ºK |
B.L.C. Function: |
Super BLC,48 zone BLC |
Gamma Correction£º |
0.45 / 1.0 |
AGC |
AUTO (18dB max) |
ALC |
AUTO / FIX |
Image Negative: |
Select by OSD Menu |
Cross Line: |
On/Off Select by OSD Menu (position adj. by software) |
Freeze Function: |
Alarm In Trigger Or Select By OSD |
Electronic Shutter |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step |
Lens: |
22X optical ZOOM LENS ,F1.6~3.8,f=4~88mm |
Diagonal |
W(57º 38¡¯) / T(2º 50¡¯) |
Hor. |
W(47º 31¡¯) / T(2º 16¡¯) |
Ver. |
W(36º 32¡¯) / T(1º 42¡¯) |
Zoom£º |
220X (22X Optical 10X Digital) |
Focus£º |
Auto / Manual |
Position£º |
64 Position (Zoom. Focus) |
Video Output£º |
Composite & Y/C output 1.0Vp-p at 75 ohm |
Control Function: |
OSD control ,Dry Switch , RS-232C / RS-485(selectable , only one active / preset RS-232C) |
Operation Temperature£º |
-10¡æ TO 50¡æ |
Operation Humidity£º |
ENGLISH / CHINESS_Simp / JAPANESE |
Power Source£º |
DC 12V¡À1V / 3.6W (Max) |

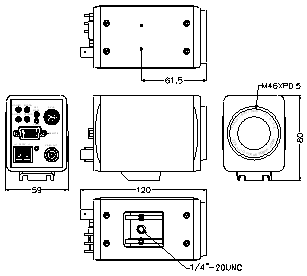

Dimensions |
120 mm (L) X 59 mm (W) X 80 mm (H) |
