The fully adjustable WATEC WAT-241 color camera provides high resolution images and access to stage the camera in any application of your choice at a low cost. The WATEC WAT-241 utilizes WATEC's Vivid technology and charges the user with the ability to adjust every standard setting of the camera. For more information see the Active Visual Mate(AVM)
Watec WAT-241 Features:
* Compact and lightweight, reasonably priced; * Function can be set as required, using active vision Couples (optional); * White balance control; * Electronic Iris; * Electronic shutter; * AGC; * Backlight compensation; * Video / DC iris automatically selected.
Watec WAT-241 Specifications:
Model |
WAT-241(NTSC) |
WAT-241(PAL) |
image sensor |
1/4" CCD |
Total pixels |
811(H)*507(V) |
795(H)*595(V) |
Effective Pixels |
768(H)*494(V) |
752(H)*582(V) |
Pixel Size |
4.9um(H)*5.6um(V) |
5.0um(H)*4.7um(V) |
Imaging system |
Ye, Cy, Mg, and G complementary color mosaic filters on chip |
Synchronizing System |
Internal Synchronization |
Scanning system
|
2:1 |
video output
|
synthesize, 1Vpp-75¦¸ ,imbalance |
Resolution (horizontal) |
450Lines(Center) |
Minimum illumination |
0.6Lux F1.2 |
Gain control |
Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
|
S/N ratio |
>50dB(AGC=6dB£¬¦Ã= 1.0) |
AE Mode |
Fixed |
1/60sec. |
1/50sec. |
EI |
1/60-1/100000sec. |
1/50-1/100000 sec. |
BLC |
ON |
Automatic gain control |
6-30dB |
Gamma characteristics |
¦Ã¨P0.45 |
WB |
ATW (2500K-9500K) |
Lens |
Video /DC£¨EIAJ arrangement,Auto-select£© |
Mount |
CS |
Working Voltage |
DC+12V¡À10% |
power consumption |
0.96W(80mA) |
Storage Temperature (¡æ ) |
-30~+70(Frost-free knot) |
Operating Temperature (¡æ ) |
-10~+40(Frost-free knot) |
Work/storage humidity |
Less than 95% RH (frost-free knot) |

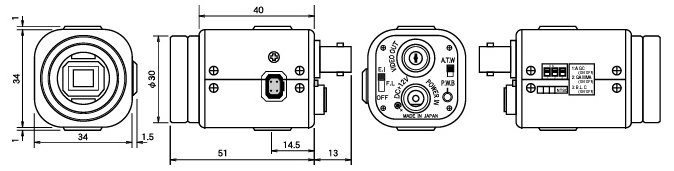

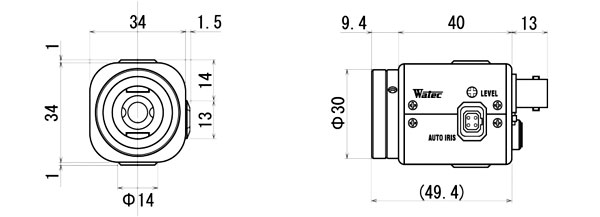

Size W¡ÁH¡ÁL(mm) |
45.5¡Á36¡Á64 |
Weight(G) |
82 |
|
