Home > Watec Cameras > > Watec WAT-240VIVID Ultra Compact Color Bullet Camera w/3.7mm Pinhole Lens

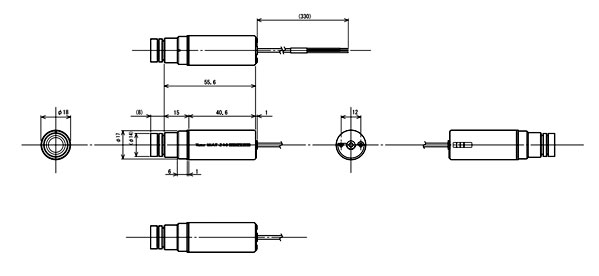

Watec WAT-240VIVID Ultra Compact Color Bullet Camera w/3.7mm Pinhole Lens

Watec WAT-240VIVID Ultra Compact Color Bullet Camera w/3.7mm Pinhole Lens

Watec WAT-240VIVID 1/4

Condition:New
Model:WAT-240VIVID
Scope: SME
SNR: 50dB(AGC OFF)

List Price:
Now Price:


The Watec WAT-240VIVID is one of the smallest and lightest CCTV bullet cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features found on larger and heavier box cameras. These include a 1/4" CCD sensor generating 450 lines of resolution, an auto iris function as well as a full complement of electronic controls. Working in concert, these enable the camera to produce excellent image quality in various lighting environments. This level of performance coupled with the camera's incredibly small size make it the camera of choice for residential or commercial applications looking for dependable yet minimally intrusive security monitoring.

Watec WAT-240VIVID Featrues:

*  Ultra compact and lightweight camera suitable for discreet surveillance applications
*  Excellent image quality with 1/4" CCD and 450 lines of resolution
*  Functional settings can be set as desired by using the Active Visual Mate
*  Back light compensation eliminates silhouette effect when the subject matter is brightly lit from behind
*  1/4" Color Filter CCD
*  450 Lines
*  Active Visual Mate
*  Ultra Compact & Lightweight
*  High resolution;
*  Super miniatures;
*  Offers a variety of lenses;
*  Function can be set as required;
*  White balance control;
*  Electronic Iris;
*  AGC;
*  BLC.

Watec WAT-240VIVID Specifications:

Model WAT-240VIVID(NTSC) WAT-240VIVID(PAL)
Image Sensor 1/4" CCD
total pixels 811(H)*507(V) 795(H)*595(V)
Effective Pixels 768(H)*494(V) 752(H)*582(V)
Pixel Size 4.9um(H)*5.6um(V) 5.0um(H)*4.77um(V)
imaging system Ye, Cy, Mg, and G complementary color mosaic filters on chip
Synchronization mode internal synchronization
Scanning system 2:1 interlaced scanning
video output synthesize,Y/C: 1.0 V(P-P),75¦¸,imbalance
resolution ratio(H) More than 450 TVL(Center)
minimum illumination 0.7lx. F2.0
S/N More than 50dB(AGC=6dB,¦Ã= 1.0)
AE (automatic exposure) 1/60-1/100000 sec. 1/50-1/100000 sec.
WB ATW(2500K-9500K)
automatic gain control 6-30dB
Gamma Features : ¦Ã¨P0.45
BLC ON
Power voltage DC + 6V¡À10%
power consumption 0.99W(165mA)
Operating Temperature -10 - +50¡æ(Frost-free knot)
Storage Temperature -30 - +70¡æ(Frost-free knot)
Work /Storage humidity Lower than 95£¥RH
Mount M13 P=1.0
label lens G3.8(glass f3.8 F2.0) / P3.7(Pinhole f3.7 F4.5)
Weight About 27G(G3.8)

*  Main visual function settings can be changed (option), please refer to the AVM specification.
*  Miniature pinhole lens are not interchangeable micro glass lenses and face to face.
