Home > Sony SSC Series > > Sony SSC-N11 Mini Dome Camera With 540TVL analogue camera

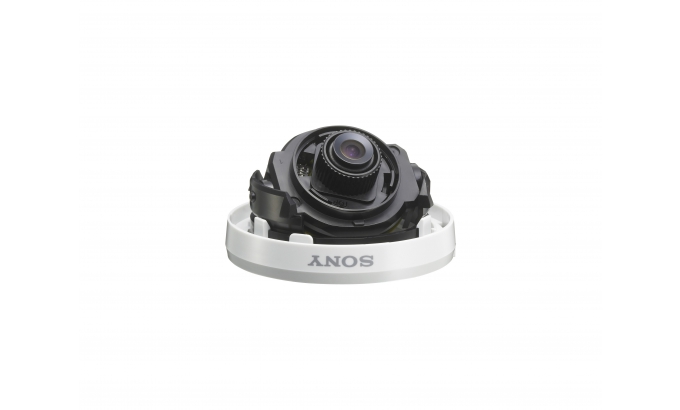

Sony SSC-N11 Mini Dome Camera With 540TVL analogue camera

Sony SSC-N11 Mini Dome Camera With 540TVL analogue camera

540TVL high resolution 0.55 lx and low power consumption

Condition:New
Model:SSC-N11



List Price:
Now Price:


Overview:

The Sony SSC-N11 is a high resolution analogue mini-dome security camera with a 1/3 Super HAD CCD II sensor, electrical Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.

With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications C achieving optimum surveillance even in difficult lighting conditions.

Specifications:

Camera
Image device 1/3-type Super HAD CCDII
Number of effective pixels (H x V) 440,000 pixels (752 x 582)
Signal system PAL standard
Horizontal resolution 540 TV lines
S/N ratio More than 55 dB (AGC Off)
Minimum illumination Color: 0.55 lx, B/W: 0.3 lx (F2.0, 50IRE); Color: 0.35 lx, B/W: 0.2 lx (F2.0, 30IRE)
Video output VBS:1.0Vp-p
Synchronization Internal lock
Gain control Auto (on/off)
White balance ATW (2000K to 10000K)
Lens type Fixed focal lens
Zoom ratio Fixed
Horizontal viewing angle 95.9 degree
Focal length f=3.0 mm
F number F2.0
Minimum object distance 400 mm
Iris Fixed
Panning range 340 degree
Tilting range 45.3 degree
Swivel rotation 340 degree
Camera Features
Day/Night Yes (Electrical D/N)
Noise reduction Yes (2D NR)
Back light compensation Yes (iBLC)
Automatic tone reproduction Yes (ATR-Lite)
General
Mass 125 g (4.4 oz)
Dimensions 84 mm x 53 mm (3 3/8 inches x 2 1/8 inches)
Power requirement DC12 V 10%
Power consumption Max. 0.9 W
Operating temperature -10 C to +50 C
Storage temperature -40 C to +60 C
Operating humidity 20 % to 80 %
Storage humidity 20 % to 95 %
Supplied accessories Operating instructions




Features:
1.Compact and stylish design
  A compact, stylish and discreet design that compliments any surveillance environment.
2.Super high resolution
  With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.
3.Electrical Day/Night function
  This ensures the camera is operating with the optimum sensitivity for both day and night conditions.
4.ATR-Lite
  ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.
5. iBLC
  iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.
6. ATW
  ATW is Sonys white balance system. It automatically adjusts the image to give an overall neutral colour balance.
7. Easy viewing angle adjustment
   Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
