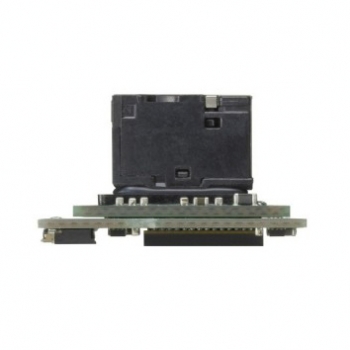

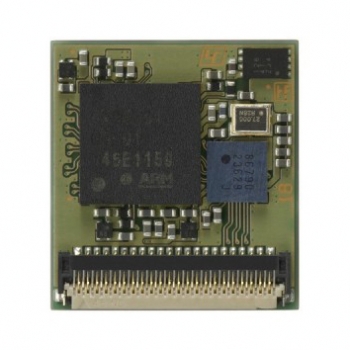

* Sony FCB-MA130 16x Zoom HD Compact Color Camera
* 1920 pixels x 1080p
* 1/2.45"-type CMOS
* 16x Digital Zoom, 30fps
* (F2.8) Full High Definition Block Camera
* Small form factor 16.5x10.3x18.0 mm
* Image Stabilizer
* Face Detection
* Wide Dynamic Range (ATR)
* Noise Reduction (3DNR)
Sony is expanding its popular FCB Block Camera Series with the introduction of an ultra-compact, all-in-one color camera ¨C the FCB-MA130 ¨C which supports both moving pictures and still images.
Colour Block CameraWith its modest dimensions, the FCB-MA130 contributes to reducing the size of finished products, and this can be useful in wide range of applications. Incorporating a 1/2.45-type Exmor™ CMOS sensor and Sony's original image signal processor, this new camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images. The FCB-MA130 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony's original image signal processor. Outstanding compactness coupled with high-quality images ¨C with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
The FCB-MA130 enhances the current collection with its highly compact size (16.5 x 10.3 x 18.0 mm) and high-quality images. With the ability to capture Full High Definition (1080p/30) moving pictures, this micro camera offers more solutions for a wide variety of industrial applications.
SONY FCB-MA130 Specifications:
* Image sensor: 1/2.45-type Exmor CMOS
* Standard output pixels: Approximately 13 Megapixels
* Signal System (movie): 1920 x 1080 (FHD), 1600 x 1200 (UXGA), 1280 x 960 (SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 480 (WVGA), 640 x 480 (VGA); 30fps/25fps*
* Signal System (still): 4192 x 3104, 4128 x 3096 (13M), 3264 x 2448 (8M), 2592 x 1944 (5M), 1920 x 1080 (FHD), 1280 x 960 (SXGA), 1280 x 720 (HD), 640 x 480 (VGA)
* Digital Zoom: 16x
* Angle of View: H: Movie Mode: 53¡ã, Still Image Mode: 58¡ã (720p/1080p modes)
* Lens: F2.8
* Gain: Auto
* Focus: One-push AF
* Object Distance: Minimum 100mm
* Exposure Control: Auto, Hold, Manual, Shutter priority, Gain priority
* Shutter speed: 1/25 to 1/5000 s, total 24 steps
* Sync System: Internal
* AE Control: Auto, Hold, Manual, Shutter priority, Gain priority
* Backlight Correction: Yes
* White Balance: Auto, Hold, ATW, Fixed (light bulb, neutral color fluorescent light, clear sky, cloudy sky, daylight color fluorescent light, light bulb color fluorescent light)
* Video Output: CMOS Clock 81MHz, Parallel 16bit (YCbCr422 / SAV, EAV selectable) / Sync Signal (HD, VD)
MIPI D-PHY Clock 324MHz, Data 2lane CSI-2 (YCbCr422)
* Camera Features: ATR, Noise Reduction, Image Stabalization for image and movie, Face Detection, Picture Effects (Flip horizontal, Flip vertical)
* Picture Effects: Flip Horizontal, Flip Vertical
* Power requirements: 3.3¡À0.1, 1.8¡À0.1, 1.2-0.05/+0.1 V DC
* Power consumption: 700 mW (at FHD movie)
* Operating temperature: -5¡ã C to +50¡ãC; 23¡ãF to 122¡ãF
* Storage temperature: -20¡ãC to +60¡ãC; -4¡ãF to +140¡ãF
* Operating humidity: 20% to 80%
* Storage humidity: 20% to 95%
* Dimensions (W x H x D): 16.5 x 10.3 x 18.0 mm; 21/32 x 13/32 x 23/32 inches
* Mass: Approx. 2.2 g; 0.078 oz
|
