SONY FCBIX11AP/FCB-IX11AP 10X Color EXview Block Camera Sony Video CCD Camera

SONY FCBIX11AP/FCB-IX11AP 10X Color EXview Block Camera Sony Video CCD Camera

SONY FCB-IX11AP 10x Block Camera w/ Field Memory

Condition:New
Model:SONY FCB-IX11AP/FCBIX11AP
Warranty 1 Years!



List Price:
Now Price:


Sony is expanding its miniature-sized FCB camera line-up with the introduction of the FCB-IX11AP color block camera. The FCB-IX11AP camera features a 1/4 type EXview HAD™ CCD and high sensitivity of 1.5 lux (50 IRE). The new FCB-IX11AP camera inherits all the outstanding features of Sony's popular FCB-IX10AP camera such as the same Digital Signal Processor (DSP) for high image quality, 10x optical zoom, built-in field memory and updated firmware to enhance its operability. Measuring only 1-9/16 x 1-13/16 x 2-5/8 inches and weighing less than 3.5 ounces, the FCB-IX11AP camera is ideal for space-restricted applications such as pipe inspection, photo booths and document stands.

SONY FCB-IX11AP/FCBIX11AP Camera Highlights:

*   New! 1/4 type EXview HAD CCD
*   Minimum Sensitivity of 1.5 lux
*   40x zoom ratio (10x optical, 4x digital)
*   High quality image in both digital zoom and slow shutter modes
*   Various AE modes including newly added Zoom trigger and interval mode
*   Various AF modes including newly added Spot AE mode to optimize the brightness within the specific area
*   Expanded mode parameter for shutter speed and gain level
*   Various customizable settings
*   Key switch control compatibility
*   Low power consumption (minimum 1.5 W)
*   EEPROM backup system without battery
*   Lead-free solder mounting board
*   High-speed serial communication (ma. 38.4 kbps) and TTL signal-level control (VISCA protocol) for quick command processing
*   Programmable factory preset

SONY FCB-IX11AP/FCBIX11AP Camera Specifications:

Image Device:  1/4-type Exview HAD CCD
Angle of View (H): Approx. 46 degrees (wide end) Approx. 5.0 degrees (tele end)
Number of Effective Pixels: Approx. 380,000 pixels (NTSC), 440,000 pixels (PAL)
Digital Zoom:  4x (40x with optical zoom)
Horizontal Viewing Angle:  46 (wide end) to 5.0 (tele end)
Minimum Object Distance:  10 mm (wide end),1000 mm (tele end)
Sync System:  Internal
Electronic Shutter:  1/1 to 1/10000 s
White Balance:  Auto,ATW,Indoor,Outdoor,One-Push,Manual
Gain:  Auto / Manual (-3 to 28 dB , 2 dB steps)
EV Compensation:  -10.5 to +10.5 dB (1.5 dB steps)
Backlight Compensation:  On/Off
Focus System:  Auto (Sensitivity: normal and low),One-Push AF,Manual,Infinity,Interval AF,Zoom Trigger AF
Camera Operation / Zoom Switch:  Zoom Tele,Zoom Wide
Picture Effects:  Neg. Art,Black & White,Mirror Image
Exposure Control:  Auto,Manual,Priority mode,Bright,EV compensation,Backlight compensation
Lens: 10x Zoom f=4.2 (wide) to 42mm (tele), F1.8 to F2.9
S/N Ratio:  More than 50 dB
Minimum Illumination:  1.5 lux
Video Output:  VBS: 1.0 Vp-p (sync negative),Y/C Output
Horizontal Resolution Value:  460 TV Lines
Camera Control Interface:  VISCA (TTL/RS-232C signal level)
Baud rate: 9.6 Kb/s,19.2 Kb/s,38.4 Kb/s
Stop bit: 1/2 selectable
Dimensions (W x H x D):  1 9/16 x 1 13/16 x 2 5/8 inches,(39.3 x 44.8 x 65 mm)
Weight:  3.4 oz (95 g)
Operating Temperature:  32 to 122 F (0 to 50 C)
Storage Temperature:  -4 to 140 F (-20 to 60 C)
Power Consumption:  1.6 W (motors inactive),2.1 W (motors active)
Power Requirements:  6 to 12 V DC/





SONY FCB-IX45CP/FCBIX45CP 18x Color Block Camera
---PRICE : 20%




SONY FCB-IX47CP/FCBIX47CP 18X Color Block Camera With Field Memory
---PRICE : 20%

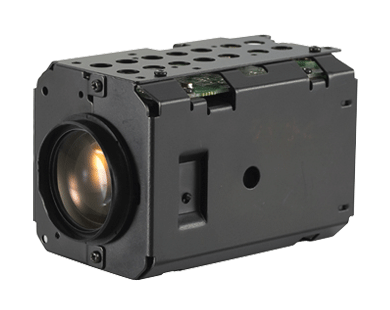

CNB-VP200L 22X OSD Zoom Auto Focus/Auto Iris CCD Camera
