Key Feature £º
* Portable tester with2.5 inch TFT display(video input)
* Auto identity NTSC/PAL
* Power-saving mode can display in a standby state
* Small appearance, highly integrated and practical
* Built-in rechargeable battery DC3.7V/1100mAh£¬Automatic charging function
* Power supply: Battery-powered, computer USB port power supply, DC5V/2A adapter power supply
* Mainly used in the camera images, perspective adjustment, saves time and effort£¬convenience
Battery Features£º
* Standard Capacity£º1100mAh
* Standard Voltage£º3.7V
* Maximum charge voltage£º4.2V

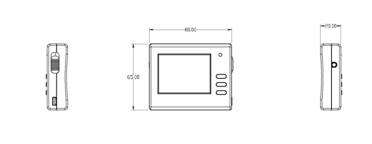

External Dimension:
|
| Input voltage |
5V¡À10% 2A(electric current) |
| Battery |
DC3.7V£¨1100mAh£© (Rechargeable lithium battery) |
|
Video signal formats |
NTSC/PAL (auto-identity) |
| Video output mode |
1.0Vp-p (full) |
| Charge Time |
(3 hours) |
| Working temperature |
-20¡æ¡«+60¡æ |
| Packing dimention |
L194mm*W151mm*H83mm | |
