Home > Mintron cameras > > Mintone MTV-54G15P 10X optical Zoom Block Camera


Mintone MTV-54G15P 10X optical Zoom Block Camera

Mintone MTV-54G15P 10X optical Zoom Block Camera

Condition:New
Model:MTV-54G15P

List Price:
Now Price:


*  10X optical zoom auto focus camera
*  1/4" COLOR ZOOM CCD CAMERA
*   Mintron MTV-54G15P 10X 1/4 COLOR ZOOM CCD CAMERA
*  ATW: Auto tracking white balance.
*  AWC: One push lock white balance.

Features:

MODELNO. MTV-54G15N MTV-54G15P
TV SYSTEM NTSC PAL
IMAGE SENSOR 1/4-inch CCD Image Sensor
CCD TOTAL PIXELS ~ 270K ~ 320K
SCANNING SYSTEM 525 lines, 60 fields/sec 625lines, 50 fields/sec
SYNC SYSTEM Internal / External(VD-Lock / ”Ą1Hz)
MINIMUMILLUMINATION Legacy mode 1.5 Lux F1.8
Star light Mode 0.05 Lux F1.8
RESOLUTION 380TVL
S / N RATIO 46dB ( MIN) / 50dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT)
WHITE BALANCE Mode AUTO (ATW or AWB)
Range 3200 ~ 9600 ºK
B.L.C. FUNCTION ON/OFF
GAMMA CORRECTION 0.45 /1
AGC AUTO (24dB max
ALC AUTO / FIX
IMAGE NEGATIVE Select by OSD menu
MONITION DETECT 48 zone (select by OSD)
CROSS LINE ON/OFF Select by OSD menu (position adj. by software)
FREEZE FUNCTION Alarm in trigger or Select by OSD
ELECTRONIC SHUTTER AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step
LENS 10X optical ZOOM LENS£¬F1.8~2.9£¬f=4.2~42.0mm
ZOOM 100X (10X optical 10X Digital)
FOCUS Auto / Manual
POSITION 64 Position (Zoom£¬Focus)
VIDEO OUTPUT Composite & Y/C output 1.0Vp-p at 75 ohm
CONTROL FUNCTION Programmable RS-232 and RS-485 (*Driver Option) * RS-485 will be standard offer if not indicate one of driver options when Order.
OSD CONTROL Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain
OSD LANGUAGE SELECT ENGLISH / CHINESS_Simp / JAPANESE
OPERATION TEMPERATURE -10”ę TO 50”ę
OPERATIONAL HUMIDITY within 85%RH
POWER SUPPLY DC12V”Ą1V / 3.6W(Max)

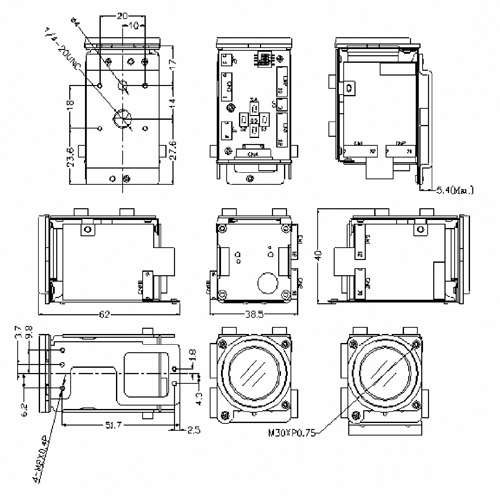

Dimensions :
