Home > Mini Spy Camera > > 15deg Accurate VOA 0.008LUX 520TVL Install Holes Mini Spy Camera


15deg Accurate VOA 0.008LUX 520TVL Install Holes Mini Spy Camera

15deg Accurate VOA 0.008LUX 520TVL Install Holes Mini Spy Camera

Condtion:New
Model:SPY520SP45

List Price:
Now Price:


This mini camera comes with high sensitive CMOS sensor, which has excellent video function and very low illumination(0.008lux). It is of high stability and ultra long working life.

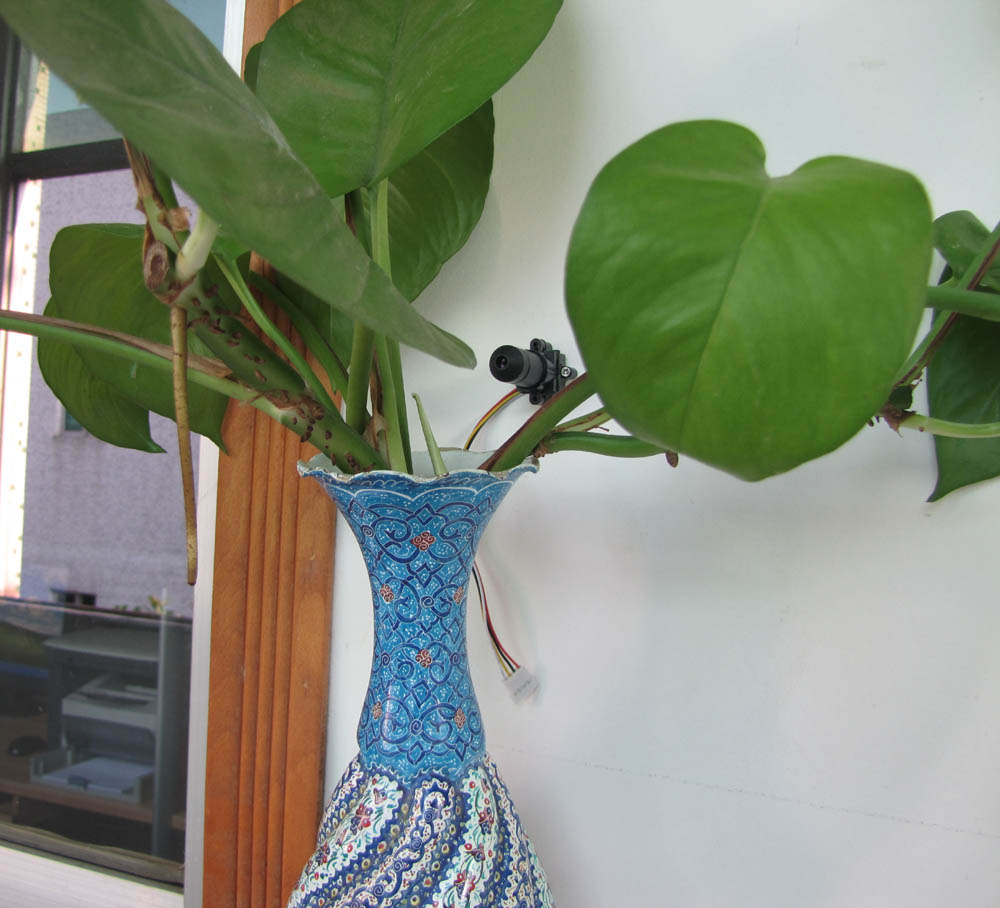

Small size(14X14X43mm) and light weight(8g), with two screw holes(screw provided), it is easy to install into the ceiling, wall, cabinets, equipments, etc. for safe surveillance.0.008lux super low illumination, which can see clearly in almost complete darkness.15 degree view of angle for more precise image, which can see small text 5 meters away.

Features:

1. Small Size: easy to install into narrow room: ceilling,wall,cabinets equipments, etc.;
2. Light Weight with 2 screw holes: easy to install without causing unnecessary damage on object surface;
3. High resolution, high sensitivity, high SNR;
4. 15 degree accurate view of angle, which can clearly see small text 5 meteres away;
5. Day & night dual mode auto switch;
6. Low Current and power consumption;
7. CMOS sensor generation IV +DSP chip offer true color & HD video.

15deg Accurate VOA 0.008LUX 520TVL Install Holes Mini Spy Camera
15deg Accurate VOA 0.008LUX 520TVL Install Holes Mini Spy Camera



Specifications:

Pick Up Element : Single chip 1/4 CMOS
Number of pixel : NTSC:720(H) x 480(V) PAL : 720(H) x 576(V)
Sensor dimension: 3.584mm(H) x 2.688(V)
Horizontal Resolution: Approximately 520 TVL
Sensitivity: 0.008Lux/F1.2
Lens & View angle 45mm F3.0 / 15 degree
S/N Ratio: 48DB
Video Out : 1.0V p-p/75ohm
Audio Out : 1.0V p-p/1Kohm

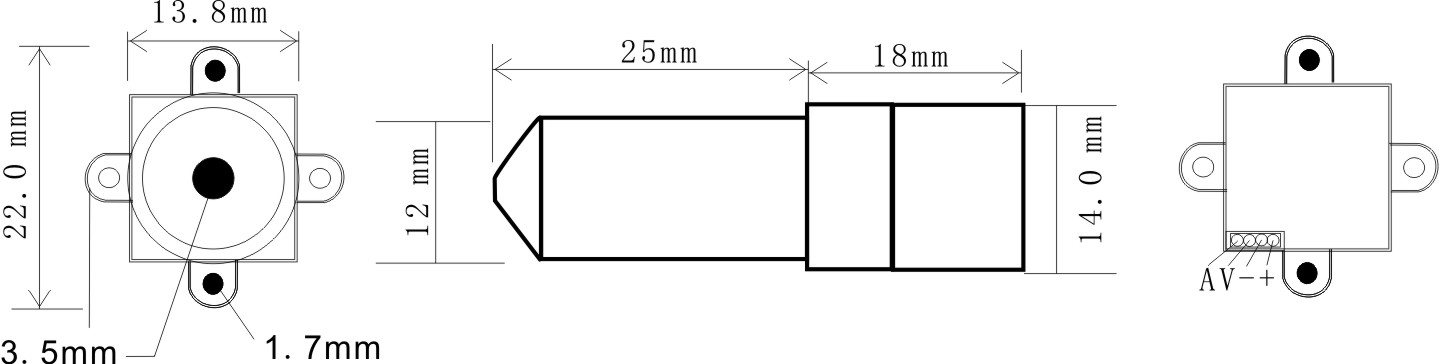

Size (L x W x H) : 14mm x 14mm x 43mm
Weight: 8G
Work Current: 5V: 65mA 12V: 32mA
Power Requirement : DC 3.3V-24V
Operating -10 to + 50 Degrees Celsius ,less than 90% RH
Connection: PIN1->Red DC5V PIN2->Black GND PIN3->Yellow VIDEO OUT PIN4->White AUDIO OUT


Use Method:

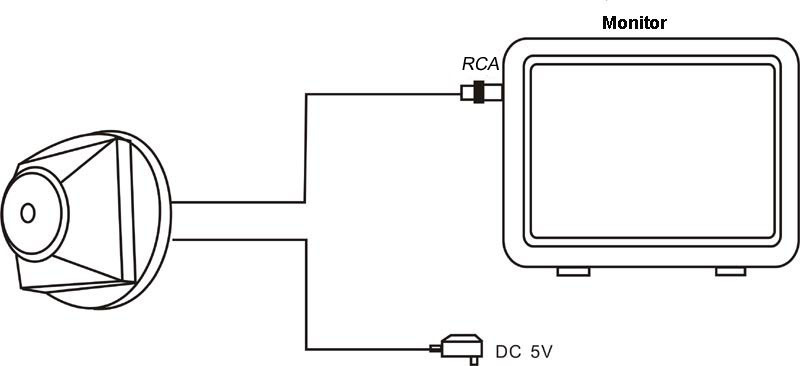

1) Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable. Then watch live video & audio, or record, play on the TV/monitor;

2)  Work with DVR(AV-IN jacked,): Camera powered by DVR. Just directly connect the camera with DVR,   it starts to work. Then watch live video & audio, or record, play,  take pictures on DVR.

package:

1 x Mini camera
1 x  cable
1 x AC adapter
