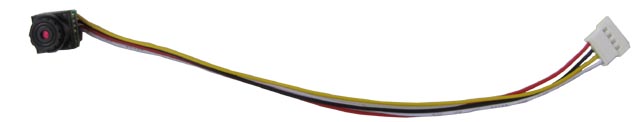

520TVL Mini CCTV Audio Camera 0.008lux with Connecter

Usage :

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR

Features & functions:
It’s an ultra small  high definition CCTV camera with excellent night vision.
Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)x492(V)	PAL:786(H)x576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)x3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2:1 Interlace
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F2.0 /55 deg
S/N RATIO	52dB
ELECTRONIC SHUTTER	OUT (1/60 S TO 1/100000 S)	OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	9.5mm x 9.5mmM x 12mm
WEIGHT	1g
WORK CURRENT	70mA
POWER REQUIREMENT	DC 3.3V-6V
OPERATING TEMPERATURE	- 10° C ~ +50°C , less than 90% RH
Connection	PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT
