This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90¡ã) mini lens. 8 controllable IR940 lamps enable the effective recording distance up to 5 meters, and surveillance area up to 100 square meters in the complete darkness. This series of products are of small volume and light weight, high stability and ultra long working life. They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.
Main Features:
* 8 invisible IR lamps enable the effective recording distance up to 5 meters;
* High luminous flux (F1.2) and wide view angle (90¡ã) mini lens;
* Surveillance area up to 100 square meters in the complete darkness;
* Small size, which is easy to install into narrow room and slim tube, etc.;
* 520TVL Digital chip synthesis technology offers true color & HD video.
Specification:
| PICK UP ELEMENT |
Single chip 1/3 CMOS |
| SYSTEM |
NTSC |
| NUMBER OF PIXEL |
NTSC:656(H)¡Á492(V) |
| SENSOR DIMENSION |
4.75mm(H)¡Á3.55mm(V) |
| HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
| SENSITIVITY |
0.00Lux/5m |
| LENS & VIEW ANGLE |
0.5mm F1.2 / 90 ¡ã |
| LAMP Control |
1: Light(Default) 2£ºOn-Off 3£ºSelf-Motion |
| LAMP |
8 IR940 |
| VIDEO OUT |
1.0V p-p/75ohm |
| LED Control OUT |
1:AV(Default) 2:On-Off 3:Photosensitive Resistor |
| WEIGHT |
Camera:12g |
Stand: 15G |
| WORK CURRENT |
DC5V:70mA(Lamp Off)/185mA(Lamp On); DC12V: 35mA(Lamp Off)/ 85mA(Lamp On) |
| POWER REQUIREMENT |
DC5V:(3.6-5V ) DC12V:(3.6-24V ) |
| OPERATING TEMPERATURE |
- 10¡ã C ~ +50¡ãC , less than 90% RH |
| Connection |
PIN1=>Red DC5V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White LED Control OUT |
Contents:

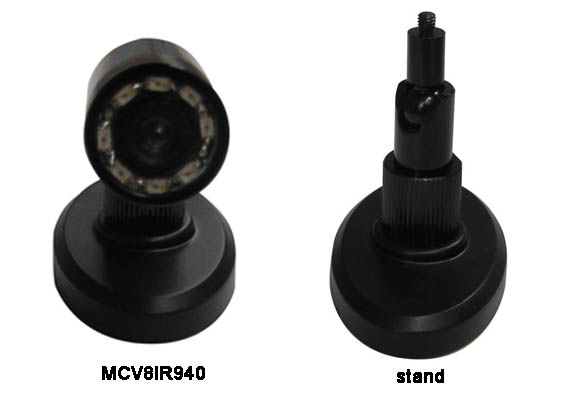

* mini camera X1;
* stand X1;
* AC adapter X1 |
