1) Outdoor low speed dome camera
2) Pan: 0-360 tilt: 0-90
3) 1 cruising tracks; 64 presets
4)1/4" Sony CCD
5) All-metal
Key Feature:
1) Double layer of Die-cast Aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
2) Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
3) Running smoothly with low speed, subwoofer noise and no image dithering
4) 64 preset positions
5) 1 Patrol tracking routs and 1 auto level scan routs.
6) Variable rotation (pan 0 ~ 15º/s ;tilt 0 ~ 15º/s); Auto level scan
7) Continuous 360 º rotations in Omni-directions no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
8) Auto flips with vertical 180 º in Omni-directions, no fade zone
9) RS485 integrated various of protocols, PELCO-D,PELCO-P etc
10) 3 class lightning defend, built in 3000V lightning proof, surge resistant
11) IP 66 outer cover with all day protection; Built-in auto thermostatic control system
| Image sensor |
1/4" SONY CCD |
| Power supply |
AC24V |
| Power consumption |
¡Ü20W |
| Synchronization |
Internal |
| White balance |
Auto/Manual |
| Active Pixels |
500 (Level) * 582 (Tilt) |
| Lens |
F=3.3mm-99mm |
| Video output |
BNC1.0VP-P75 |
| Min Illumination |
0.1Lux |
| Focal length |
F=3.25~88mm |
| Iris & Zoom |
Auto/Manual |
| Zoom Function |
27X optic zoom and 12X digital zoom |
| Pan rotation range |
360¡ã continuously, 0.1¡ã~15¡ã/s |
| Title rotation range |
90¡ã(180¡ã auto flip) , 0.1¡ã~ 15 ¡ã/s |
| Control method |
RS485 |
| Protocol |
Pelco-P/D etc. |
| Baud rate |
2400bps/4800bps/9600bps/19200bps |
| Present points |
64 |
| Work temperature |
-40¡ãC-60¡ãC |

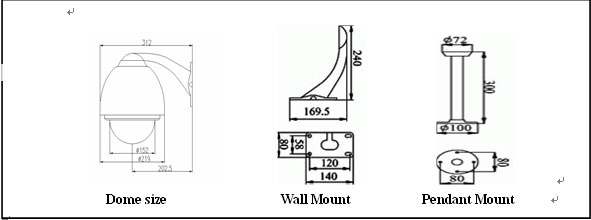

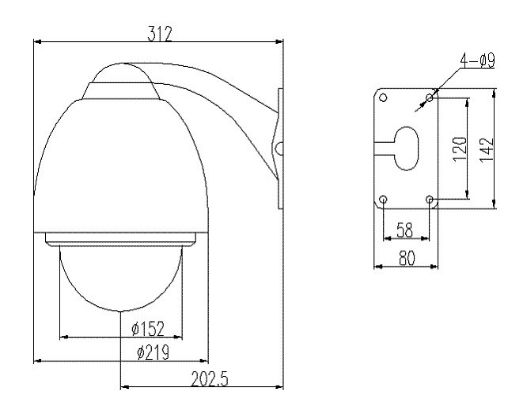

| Installation |
Wall, Pendant |
| Level of Protection |
IP66 Shell, Lightning Proof, Surge Resistant |
| Packing Dimension |
L370mm*W330mm*H420mm |
| Weight |
Wall Mount: 6.65kg Pendant Mount: 6.60kg | |
