Home > LG Camera Series > > LG LM3223P IR 650TVL 1/4 CCD XDI-II ICR Color Module Camera


LG LM3223P IR 650TVL 1/4 CCD XDI-II ICR Color Module Camera

LG LM3223P IR 650TVL 1/4 CCD XDI-II ICR Color Module Camera

Condition:New
Model:LM-3223P

List Price:
Now Price:

MODEL: LM3223N LM3223P
VIDEO SYSTEM NTSC PAL
Total / effective pixels 520K / 480K 610K / 570K
Imaging sensor 4.5mm (1/4 Type) CCD
ISP XDI-
Lens F1.5The minimum optical zoom);F3.0 (Extra Optical Zoom ) f=3.5 ~ 80.5 mm
Optical ZOOM X23
Digital Zoom X12
Iris Control DC
Synchronization Method In/Out
Scanning Frequency 15.734 KHz / 59.94 Hz 15.625 KHz / 50 Hz
Horizontal Resolution 650TVL
S/N Ratio: 50dB
Minimum Illumination(30IRE) B/W - Sens off : 0.05 lux, Sens up on : 0.0001 lux Color - Sens off : 0.6 lux, Sens up on : 0.003 lux
Video Output 1Vp-p Composite (75)
Function Day & Night ICR (Auto / Day / Night)
BLC WDR /BLC /HLC/OFF
3D DNR DNR (Off / Low / Middle / High)
AGC 0 ~ 10 (1step level)
ES 1/60 ~ 1/120,000 1/50 ~ 1/120,000
Sens-up OFF Auto / (X2, X3, X4, X128)
White Balance Auto / ATW (1,700 degree K ~ 11,000 degree K) / Keying automatically / Manual
Motion Detection Intelligent / Regional motion detecting
Privacy shelter 8 area
EIS On / Off
Digital visual effect OFF / Flip Vertical / The Mirror / Spin
Multilingual menu English Chinese Hangul GetSmile Japanese
Interface Treaty LG-multixETM
Serial Interface RS-232TTL
Power Power DC 9V ~ 14V
Power loss 3.6W
Environment Operating temperature/Humidity -10C ~ 60C / 0%~80%RH (non-condensing )
Storage Temperature/Humidity -20 deg.C ~ 60deg.C / 0% ~ 85%RH non-condensing )
Craft Size (HVD) 46.6*57.6*84.9 (A-type) / 50*60*85.7 (B-type)
Weight 219.5g (A-type) / 235.5g (B-type)





CCTV Sony Camera Zoom Module FCB-EX480CP Colour
---PRICE : 20%




CCTV Sony Camera Zoom Module FCB-EX11DP Colour
---PRICE : 20%

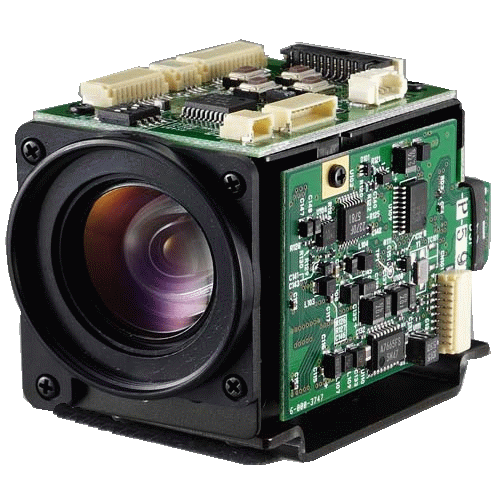

Mintron MTV-54G10HP AWC ATW 10X CCD Camera
