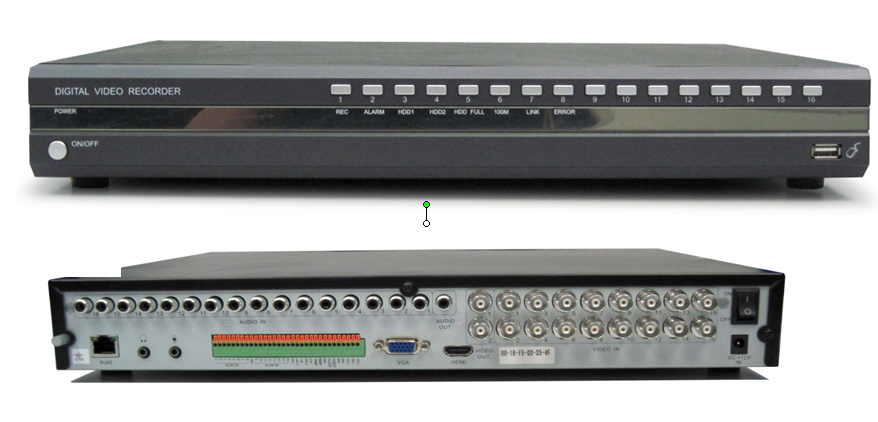

16CH DVR H264 Format HD VGA Functional Type

16CH DVR H264 Format HD VGA Functional Type

Condition:New

List Price:
Now Price:


Specifications:

1. Using the latest h.264 compression algorithm, compression rate is high.
2. Support 4ch audio and video surveillance video, support CIF, English, D1 resolution.
3. Support compound flow and streaming video coding, composite stream audio and video coding in sync.
4. Support the watermark function.
5. Support HD VGA and BNC and output
6. Support free domain name, the most simple set of networking
7. Support mainstream PTZ decoder control protocol, support the preset point, cruise path and track
8. To support a SATA hard drive, can support capacity is not less than 2 TB hard drive.
9. Support the mainstream of the operating system into intelligent mobile phone, and cell phones can store several IP address on demand.

Technology parameters:

Item Device Parameter Specification
System Language English/ Chinese
GUI Graphic menu(OSD Menu)
password user passwordŁ¬ administrator password
Video Video in 16 ch composite video input 1.0Vp-pŁ¬impedance75¦¸,BNC
Video out 2ch composite video output 1.0Vp-pŁ¬impedance75¦¸,BNC
Video display 16ch:1/4/9/16channel switch
Video standard PAL,25f/s,CCIR625line,50scene
ˇˇNTSC,30f/s,CCIR525line,60scene
Audio Audio input 16ch audio input,impedance600¦¸,RCA
Audio output 1ch audio output,impedance600¦¸,RCA
Basic electricity output Linearity electricity
Record style Audio video recorded simultaneously
Audio compression ADPCM
Picture proceeding and store Picture compression H.264
Picture resolution CIF
Streaming style ISO14496-10
Audio style ADPCM
Video code rate CIF: 384,512,768 Kbps Standard(optional)
ˇˇ
HD1:512,768,1024Kbps Higher(optional)
ˇˇ
D1:896,1024,1280Kbps The highest (optional)
Audio code rate 32KB/s
Data storage SATA HDD storage(optional)
Alarm Alarm input 16 alarm input
Alarm output 1 alarm output
Connector Serial interface Support 1 RS5
ˇˇ
Support 1 RS485
Network interface RJ45Ł¬10M/100M
VGA VGA output Support 800x600,1024x768,1280x1024,1366x768,
ˇˇ
1440 x900 resolution
HDMI HD Video output Support720PŁ¬1080IŁ¬1080P
Supporting software IE software Through the cable network realization video preview, video downloads, configuration parameters etc Functions
Software upgrade Support USB firmware upgrade
others Voltage input AC:110~240V
Power Consumption 6W without HDD
Working temperature -10----50ˇć
